It is developed and optimized based on the similar domestic and foreign products with our practical experience; the multifunction equipment is very suitable for grinding, classifying, shaping and depolymerizing the materials with Mohs’ hardness below 3 degree.

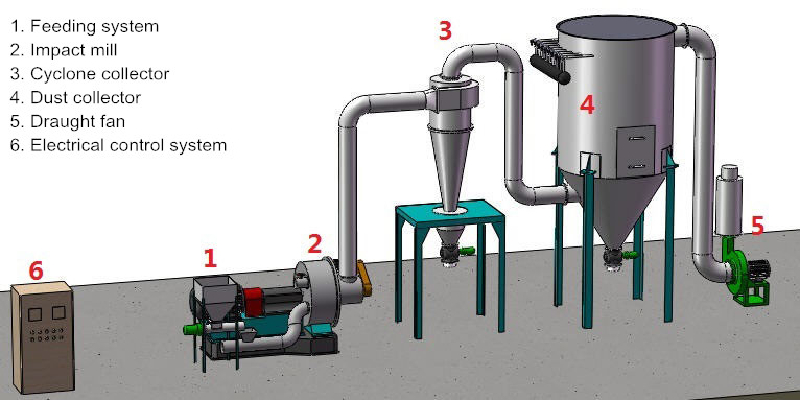

Working principle:

Material feed into the grinding chamber by a dosing feeder,they are impacted,sheared and grinded by high speed rotating unit and stator equipped with grinding tooth, the oversized particle return for grinding and qualified is collected.

Feature:

  1.Integration of mill and classifier,it is free from over grinding.

   2.Sharp particle size distribution, fineness d97=2 ~ 100um is adjustable.

   3.Inner temperature is reduced by airflow, suitable for heat-sensitive materials.

   4.Negative operation is free of dust pollution.

   5.Depolymerizing agglomerated material

   6.Grinder equipped with slag discharge device, which can automatic discharge the hard and impurity materials

   7. Compact structure.

   8.A little wearing parts and easy maintenance.

Application

Grinding for Flake, acicular, fibrous materials Material which Mohs hardness below 3 degree and moisture content below 15%, and scattering the dry nonmetal agglomeration. Very suitable for the fields of Chemical, pharmaceutical, food, catalyst, aluminum hydroxide, aluminum oxide, talc, mica, graphite, AC foaming agent, petroleum coke, pesticide, dye, paint, carbon black, printing, electronic materials.
