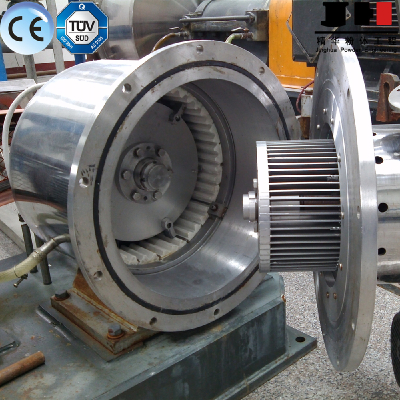

Impact mill &crusher

1.Working Principle

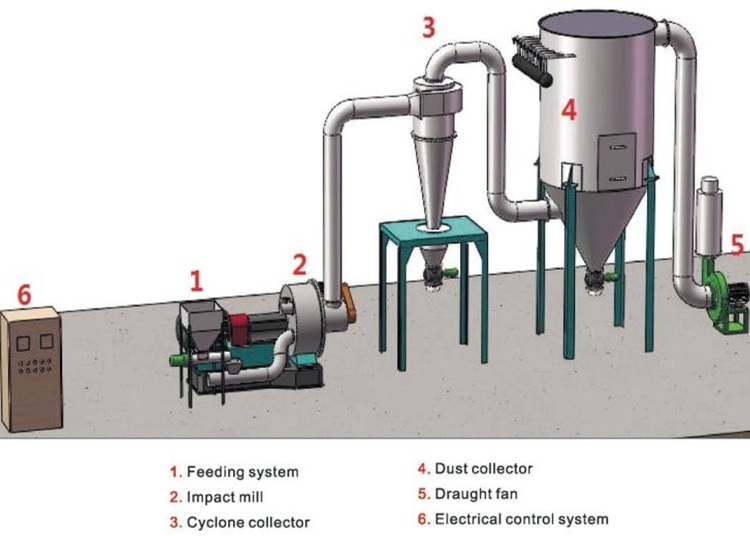

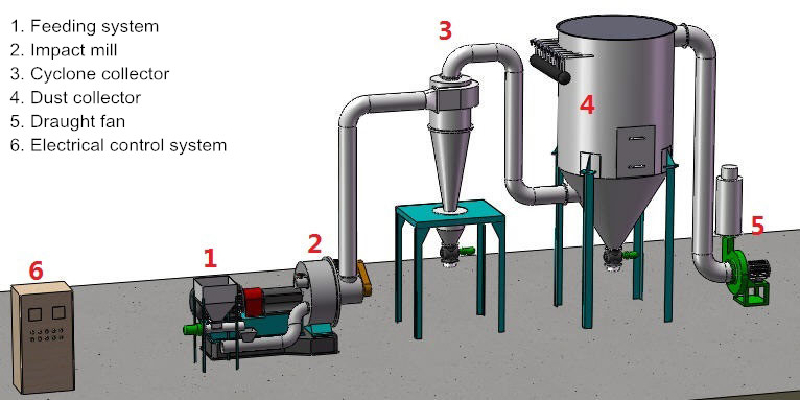

  The material is fed into the grinding chamber by the quantitative feed system, the material is impacted and sheared between the high speed rotor and the gear stator, the grinded material enter the classifying area under the air flow running, the qualified material is cllollected by the cyclon and dust collector, the unqualified material return to the grinding area for second grind.Its special design can make the material fully dispersed, grinded fully,energy saving and grind efficiency improving.
2.Main characteristics
  (1)Simple and compact structure, high production capacity, low energy consumption, less wearing parts and easy maintainance.
  (2)This kind of machine has a variety of grinding ways, the type can be selected according to the characteristics of material.
  (3)The system working under the negative pressure, the dust can not be overflow, so the work environment guarantee.
  (4)The air flow can help to reduce the heat in the machine, so it is suitable for heat-sensitive material crushing.

  (5)Integrating the grinding function with the classifying function,it can separate the required fineness material in time, avoiding over grinding,and achieving the small granularity range.
